JB22 Aluminum Profile Shrink Packaging Machine
Our primary offerings include the Jiafa brand high-efficiency wood grain transfer oven, high-efficiency heat shrink packaging machine, film laminating machine, wrapping machine, and various packaging equipment. Additionally, we provide machinery and equipment for aluminum profiles. With a commitment to excellent quality and competitive pricing, we have emerged as a major supplier of heat shrink packaging machines in China.
Categories: Aluminum Shrink Pack Machine
Product Introduction

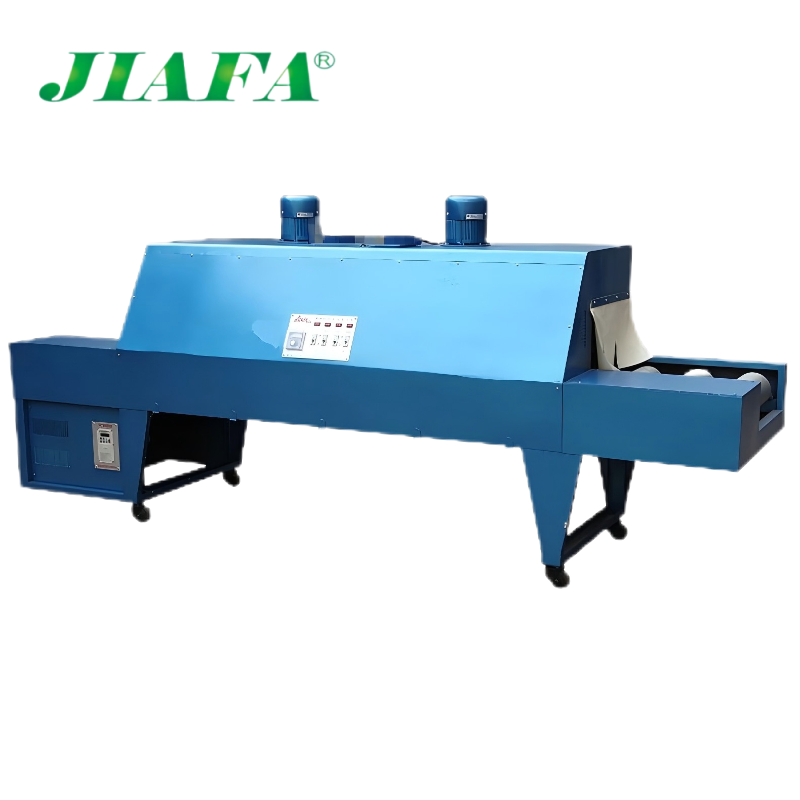

Heat Shrinking Packing Machine for Aluminum Profiles
Product Overview
This heat shrinking packing machine is specialized spray-coated rear packaging equipment and core aluminum backend packing machinery, tailor-made for long linear aluminum profile products. It executes the complete process of film wrapping → heating shrinkage → sealing and shaping, enabling heat-shrinkable films (PVC, POF, PET, etc.) to tightly cling to the surface of single or bundled aluminum profiles after heating, forming a full-coverage sealed protective layer. It delivers all-round waterproof, dustproof, anti-collision and securing functions for aluminum profiles, optimizes product packaging appearance, and greatly enhances the storage, transportation and circulation performance of finished aluminum profiles, making it an indispensable post-processing packaging device for aluminum profile manufacturing enterprises.
Main Features
1. Precision Tight Shrink Packaging: Wrap aluminum profiles with dedicated heat-shrinkable film, then trigger thermal shrinkage via heating; the film fits tightly around the product without wrinkles or gaps, realizing firm, fitting and fully enclosed packaging.
2. Automatic Buffer Protection: Built-in automatic buffer protection system, effectively preventing damage to the equipment and aluminum profiles caused by misoperation, sudden faults or excessive impact, ensuring safe and stable operation throughout the packaging process.
3. Humanized & Flexible Control: Adopts ergonomic and user-friendly control design, with intuitive operation logic and diversified regulation modes, easy to get started, and flexibly adapts to different packaging specifications and production rhythm demands.
4. Intelligent Tracking & Compensation: Equipped with automatic tracking and compensation function for operating speed and heating temperature, maintaining constant and stable packaging parameters in real time, ensuring consistent, high-quality shrink packaging effects batch after batch.
5. Reinforced Shrink Film Performance: Effectively improves the toughness and weather resistance of heat-shrinkable film, enhances the anti-breakage performance of the packaging layer, and greatly reduces film rupture risks during transportation, handling and storage of aluminum profiles.
Main Structural Components
1. Dual Imported High-Efficiency Fans: The heat box is equipped with two imported brand high-efficiency fans, featuring ultra-high efficiency, superior high-temperature resistance, high rotational speed and exceptional running stability. Rated operating voltage: 230V; rated power: 1/2 HP (370W); maximum motor power: 750W, actual operating power: approx. 180W, with outstanding energy-saving efficiency. These fans feature extremely low no-load and operating current, maintain high rotational speed and stable airflow even in harsh 200℃ high-temperature environments, with no performance attenuation during long-term use, providing reliable support for low-temperature dehydration drying and high-efficiency energy-saving operation. Unlike ordinary standard fans on the market, it avoids speed decay, air pressure drop and performance degradation after long-term use, eliminating the drawbacks of increased power consumption and reduced packaging efficiency.
2. Swiss-Technology Far-Infrared Heating Tubes: Adopts elliptical U-shaped side-insertion metal far-infrared high-efficiency heating tubes manufactured with imported Swiss technology, featuring rapid heating, high thermal efficiency, low energy loss and long service life. Powered by 380V three-phase four-wire power supply, rated power: 18KW, delivering stable and uniform heating to ensure ideal shrink effects.
3. High-Stability Automatic Temperature Control System: Equipped with imported Japanese Mitsubishi or Fuji high-quality AC contactors, paired with renowned domestic brand temperature controllers to build a durable automatic temperature control circuit, with a maximum adjustable temperature of 250℃, precise temperature control and stable operation, long service life.
4. High-Efficiency Drive & Speed Regulation System: Configured with a 0.37kW high-efficiency branded drive motor, matched with well-known manufacturer frequency converter speed regulator; conveyor speed is freely adjustable within 0–30m/min, maximum conveying weight ≥80kg. Equipped with imported Japanese Panasonic switches and additional Forward/Stop/Reverse conversion switch, realizing flexible and stable conveying control.
Main Technical Parameters & Requirements
1. Overall Machine Dimensions: 3200×760×1450 mm (Length × Width × Height)
2. Hotbox Access Dimensions: 2000×400×270 mm (Length × Width × Height)
3. Drive Motor Power: 0.37KW
4. Applicable Power Supply: 380V 3-phase 4-wire
5. Feeding Conveyor Speed: 0-30 m/min, stepless adjustable
6. Maximum Conveying Weight: ≥80kg
7. Maximum Operating Temperature: 250°C
8. Conveyor Platform Height: Approx. 730mm
9. Standard Configuration: 1. Equipped with one 4-meter long conveyor at each material entrance and exit;
2. Installed with 3 steel rollers at each entrance and exit end to ensure smooth conveying and prevent profile surface scratches.
Application Scenarios
As a specialized automated packaging device for aluminum profiles, this machine is widely applied in the whole industrial chain of aluminum profile production, storage, transportation and delivery, perfectly meeting high-frequency packaging demands in various scenarios:
Production Workshop Online Packaging: Suitable for online bundled packaging of finished aluminum profiles after extrusion, spraying and processing, realizing standardized shaping packaging immediately after production, facilitating subsequent turnover and improving workshop production efficiency.
Warehouse Sealed Storage: Provides sealed and moisture-proof protection for aluminum profiles in warehouses, isolates dust, moisture and corrosive substances, extends the safe storage cycle of profiles, and avoids surface oxidation, corrosion and contamination during long-term storage.
Long-Distance & Harsh Environment Transportation: Ideal for cross-regional long-distance transportation and transportation under complex road conditions, the tight shrink packaging layer offers excellent shockproof and anti-collision performance, reducing cargo damage caused by friction and collision, and ensuring profile integrity during transportation.
Finished Product Delivery & End-Use Supply: Applied to the final standardized packaging of finished aluminum profiles before delivery, enhancing product appearance and grade, improving product market competitiveness and customer trust, and facilitating product identification, handling and acceptance.
Bundled & Integrated Packaging: Realizes efficient integrated packaging of multiple long profiles, profile accessories and matching parts, preventing parts scattering or loss, simplifying warehousing and logistics management, and optimizing the whole circulation link.
