Product Introduction

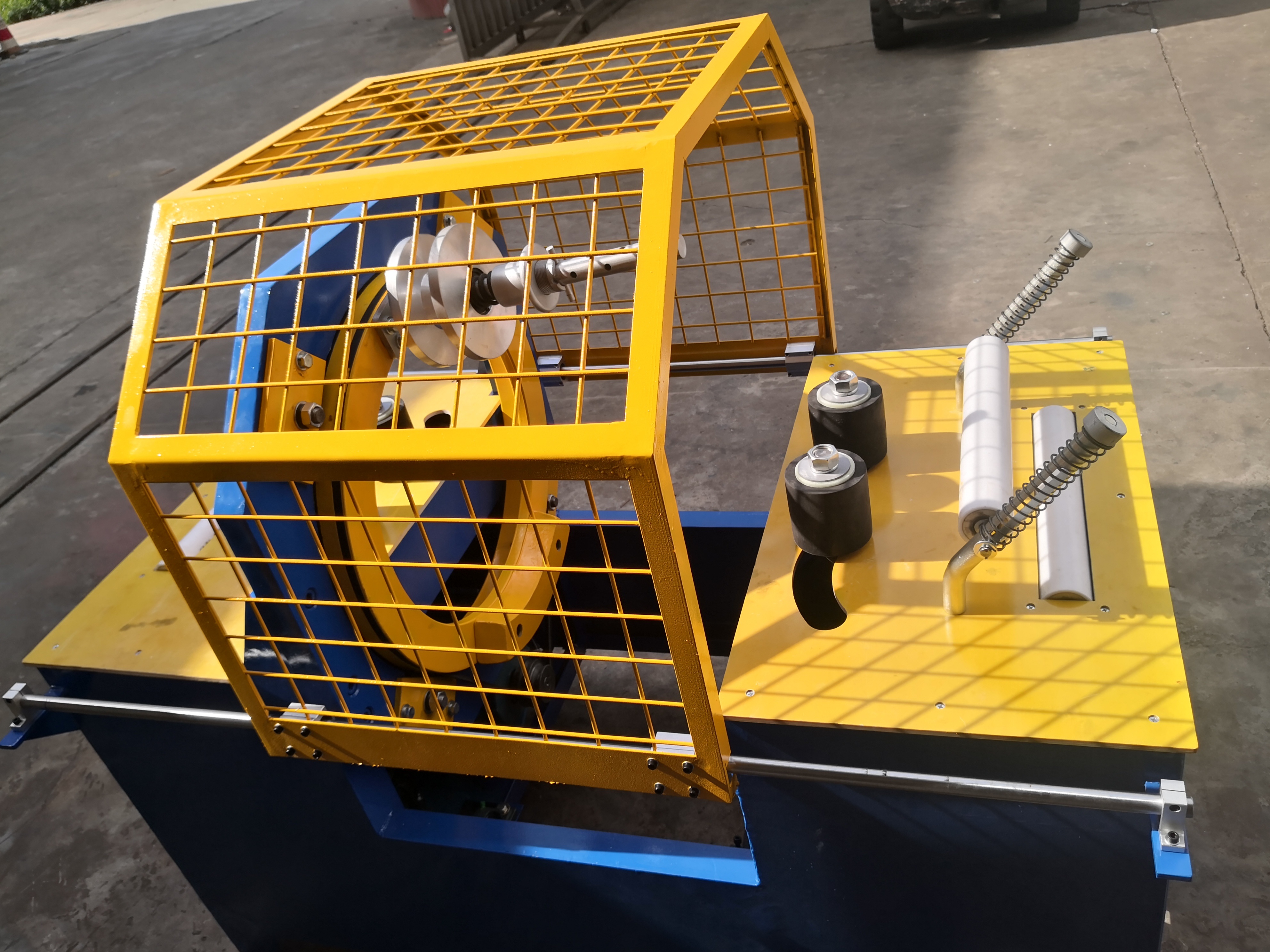

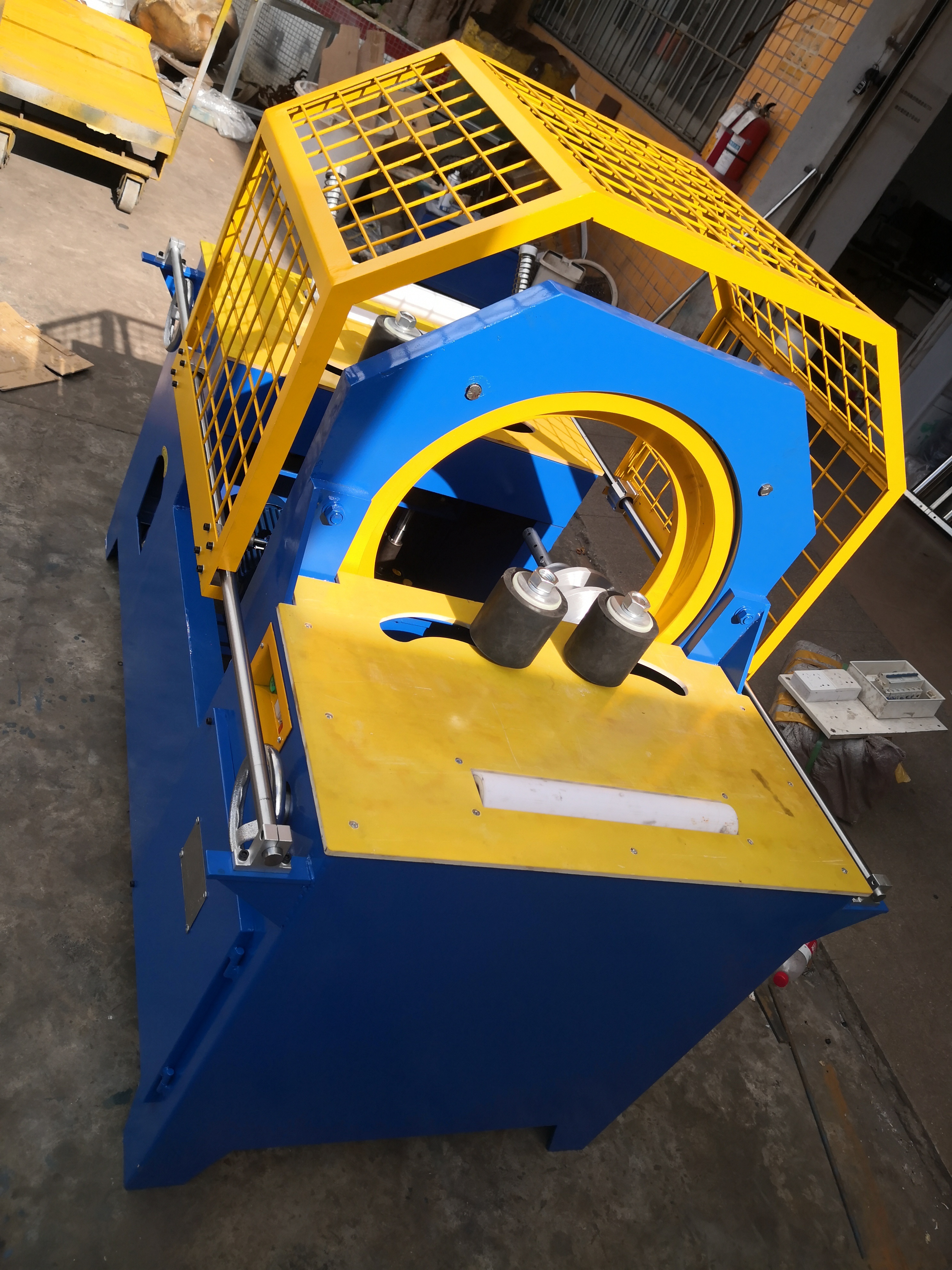

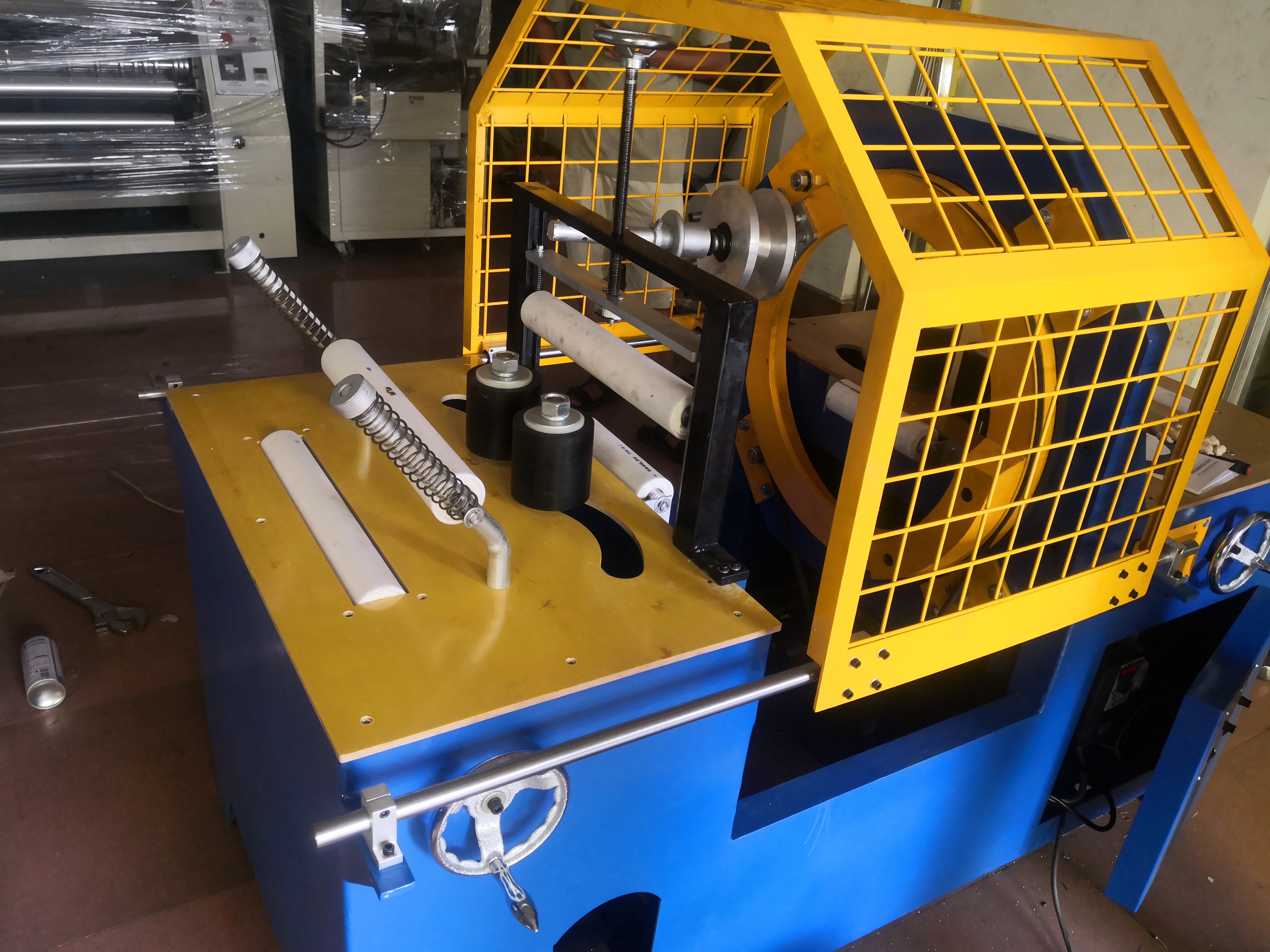

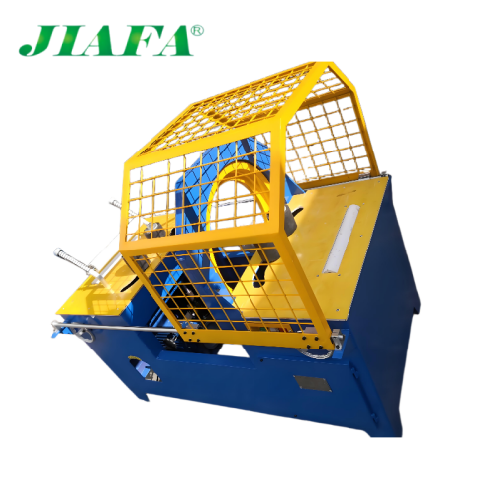

Aluminum Wrap Around Packaging Machine
Product Description
Our Aluminum Wrap Around Packaging Machine is a professional industrial automation device, specifically designed to wrap aluminum profiles (such as extrusions for doors, windows, furniture, and construction) with protective materials—including stretch film, PE film, or kraft paper. This automated packaging solution effectively safeguards product integrity during storage and transportation, preventing scratches, corrosion, dust contamination, and other potential damages. As a dedicated backend packaging equipment for aluminum products, it greatly improves packaging efficiency and ensures the safety of products during transit.
Main Performance
1. Versatile Packaging Options: Compatible with kraft paper, stretch wrap, and mesh bags, catering to diverse packaging needs of different products and scenarios.
2. Flexible Density Adjustment: The packaging density can be flexibly adjusted according to the size, shape, and protection requirements of the profiles, ensuring firm and appropriate wrapping without damaging the products.
3. Efficient Paper Delivery: Ingeniously designed paper delivery device, which can quickly and stably fasten the wrapping paper to the machine, reducing downtime and improving overall packaging efficiency.
4. User-Friendly Operation: Simple and intuitive operation interface, easy to learn and master—no professional technical training is required for operators, saving labor costs.
Application Range
This wrap-around packing machine is widely applicable to the packaging of various profiles and pipes, including: aluminum profiles, aluminum tubes, stainless steel profiles, aluminum bars, aluminum alloy profiles, as well as plastic and steel products. It is an ideal packaging solution for industries such as construction, furniture, and aluminum processing.
Profile Wrapping Process
The machine operates with a smooth and efficient workflow: The driving motor drives the large rotary table and the packing belt to perform circular motion. Meanwhile, the feeding motor (equipped with cycloidal pin stepless speed regulation) drives the materials to the rubber pressing wheel through the worm gear reducer. The profile materials are then transported linearly through the center of the rotary table, realizing uniform and tight winding packaging automatically.
Main Technical Parameters and Requirements
1. Machine Dimensions: 1530×1050×1270 (L×W×H mm)
2. Conveyor Configuration: Each entrance and exit is equipped with a 4-meter galvanized roller conveyor frame, ensuring stable and smooth material transportation.
3. Motor Parameters: Packaging motor: Y100L-6-1.5KW; Feeding motor: JWB-0.37X-60D; Profile conveying speed: 4090-20450 mm/min; Machine weight: ≥500Kg.
4. Power Supply & Reducer: Applicable power supply: Three-phase 380V AC 50Hz; Worm gear reducer: WP46.5 (transmission ratio I=1:10, module m=3).
5. Packaging Parameters: Packaging turntable rotation speed: 97/149 r/min; Packaging paper spacing: 27–210 mm; Packaging paper width: <200 mm; Packaging paper outer diameter: <φ250 mm; Maximum packaging diameter: φ180 mm; Paper core diameter: 76 mm; Maximum packable dimensions: 250×150 mm.
6. Feeding Direction: Right-in, left-out (conforms to industrial production operation habits, facilitating seamless integration into production lines).
Leveraging advanced technology from Europe and America since 1991, specializes in producing the Jiafa brand packaging machine. Our production spans two workshops, covering 4500m² and 7000m², strategically located in Boai Road, Dali Town, Foshan City, and Longgao Road, Jiujiang Town, Foshan City. Notably, our offerings include the high-efficiency wood grain transfer oven, heat shrink packaging machine, film laminating machine, and wrapping machine, alongside various packaging equipment. Committed to excellence, competitive pricing, and top-notch quality, we've earned a reputation as a leading supplier of heat shrink packaging machines in China.
