1300 wide aluminum plate large flat double-sided film laminating machine
Our primary offerings include the Jiafa brand high-efficiency wood grain transfer oven, high-efficiency heat shrink packaging machine, film laminating machine, wrapping machine, and various packaging equipment. Additionally, we provide machinery and equipment for aluminum profiles. With a commitment to excellent quality and competitive pricing, we have emerged as a major supplier of heat shrink packaging machines in China.
Categories: Aluminum Sheet Lamination Machine
Product Introduction
Protective Film Coating Machine For Aluminum Board
Product Introduction
An aluminum sheet laminating machine is a specialized piece of equipment designed to apply a protective film or coating onto the surface of aluminum boards. This process is critical across a wide range of industries, including construction, automotive manufacturing and electronics, where aluminum boards require reliable protection against scratches, dust accumulation and various forms of damage during transportation, storage and subsequent processing procedures.
Main Performance
1. High-Quality Rubber Rollers: The rubber rollers are fabricated with premium silicone and thermally conductive materials, featuring excellent heat conductivity and shortened machine warm-up time. A temperature gauge controller is equipped to monitor and regulate the laminating temperature in real time, supporting both cold and hot lamination processes flexibly.
2. Premium Laminating Effect: Moderately hard rubber rollers ensure firm, even fitting of the protective film, achieving bubble-free, wrinkle-free high-quality laminating with strong adhesion and no edge warping.
3. Stable Drive System: Equipped with high-performance drive motors, including variable-frequency speed control motors, DC speed control motors and AC electronic speed control motors. Adopts pure copper coils to minimize heat generation during long-term continuous operation, ensuring stable and durable running.
4. Flexible Operation Modes: Features manual/automatic dual-mode selection and forward/reverse running functions, enabling flexible and convenient operation to adapt to debugging, trial production and batch processing demands.
5. Wide Specification Adaptability: The laminator is available in multiple models, with a laminating width range covering 250mm to 2000mm to meet diverse processing requirements of different workpieces.
Use Range
This machine is specially designed for surface protective film laminating and packaging of various sheet materials, including aluminum boards, acrylic panels, honeycomb panels, door and window glass, and other flat plates, providing all-round surface protection for diverse sheet products.
Film Lamination Process

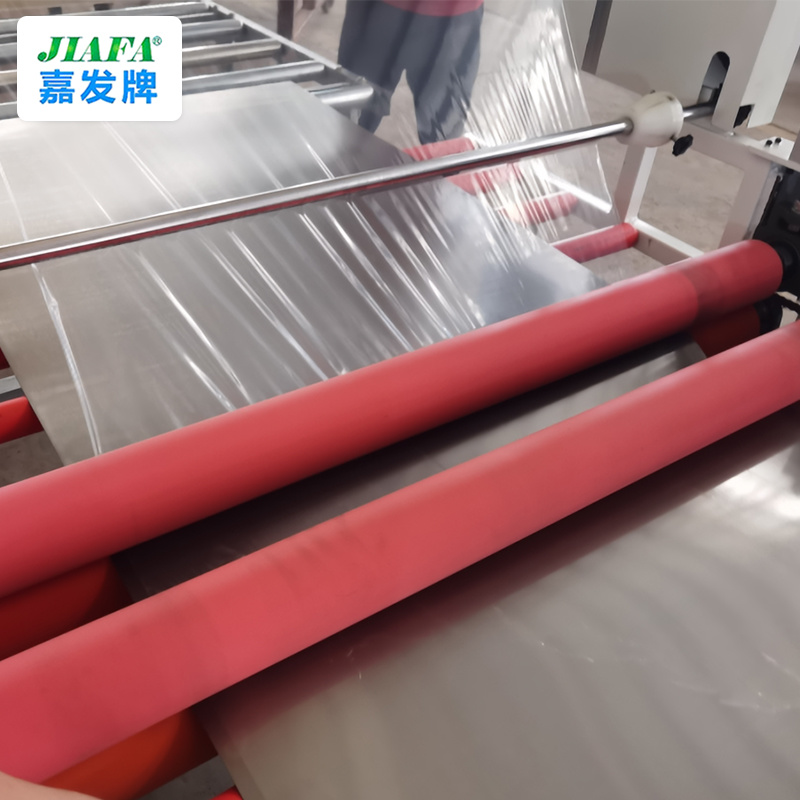

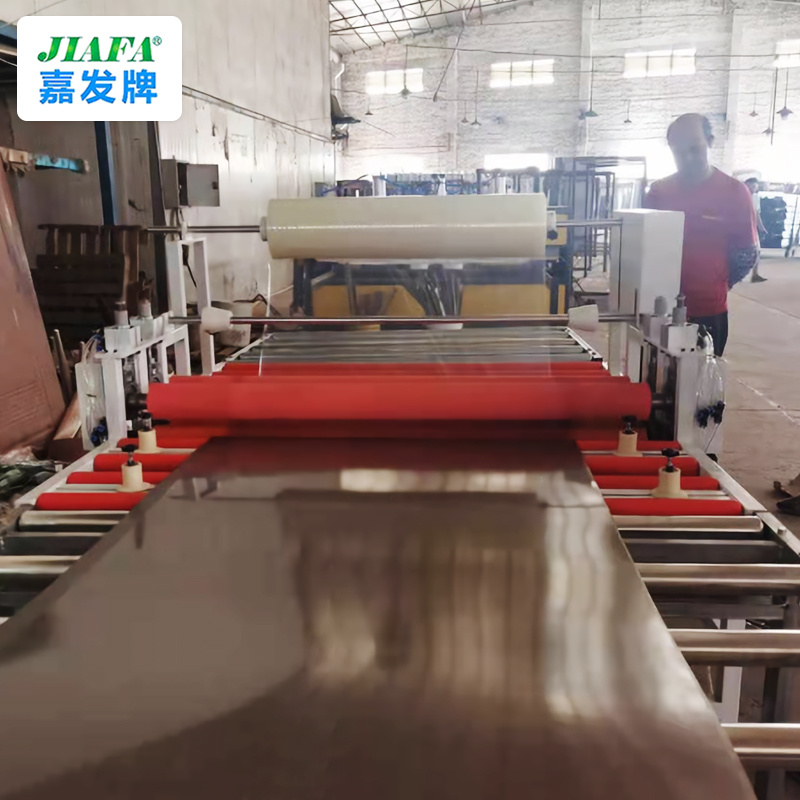

First, install the roll of flat protective film onto the special film holder of the aluminum film coating machine. Place the aluminum board or other sheet workpiece smoothly on the laminating platform, then start the machine. The equipment will automatically and accurately attach the protective film to the workpiece surface; the laminating pressure can be adjusted via the pneumatic lifting rubber rollers to ensure more balanced and even film application. After the laminating process is completed, the finished workpiece will be discharged automatically along the conveying rack.
Main Technical Parameters And Requirements
1. Overall Machine Dimensions: 1430×1750×1150 mm (Length × Width × Height)
2. Applicable Power Supply: 220V, 50Hz; Rated Power: 0.37KW
3. Maximum Laminating Width: 1300mm
4. Diameter of Upper & Lower Main Adhesive Rollers: 100mm
5. Number of Cylinders: 2 pcs
6. Number of Main Adhesive Rollers: 2 pcs (Upper: 1 rubber roller φ100×1350mm; Lower: 1 rubber roller φ100×1350mm)
7. Laminating Speed Control: Supports automatic/manual speed regulation. Adopts a domestic 0.37KW AC motor (equipped with aluminum gearbox) matched with a well-known brand frequency converter, ensuring stable laminating speed and improved laminating quality.
8. Laminating Speed Range: Approx. 0-20 meters per minute
9. Conveying Rollers Configuration: Approx. 7 rubber-coated rollers (Ф50mm) installed at both the material inlet and outlet ends respectively.
Leveraging advanced technology from Europe and America since 1991, specializes in producing the Jiafa brand packaging machine. Our production spans two workshops, covering 4500m² and 7000m², strategically located in Boai Road, Dali Town, Foshan City, and Longgao Road, Jiujiang Town, Foshan City. Notably, our offerings include the high-efficiency wood grain transfer oven, heat shrink packaging machine, film laminating machine, and wrapping machine, alongside various packaging equipment. Committed to excellence, competitive pricing, and top-notch quality, we've earned a reputation as a leading supplier of heat shrink packaging machines in China.
