Product Introduction

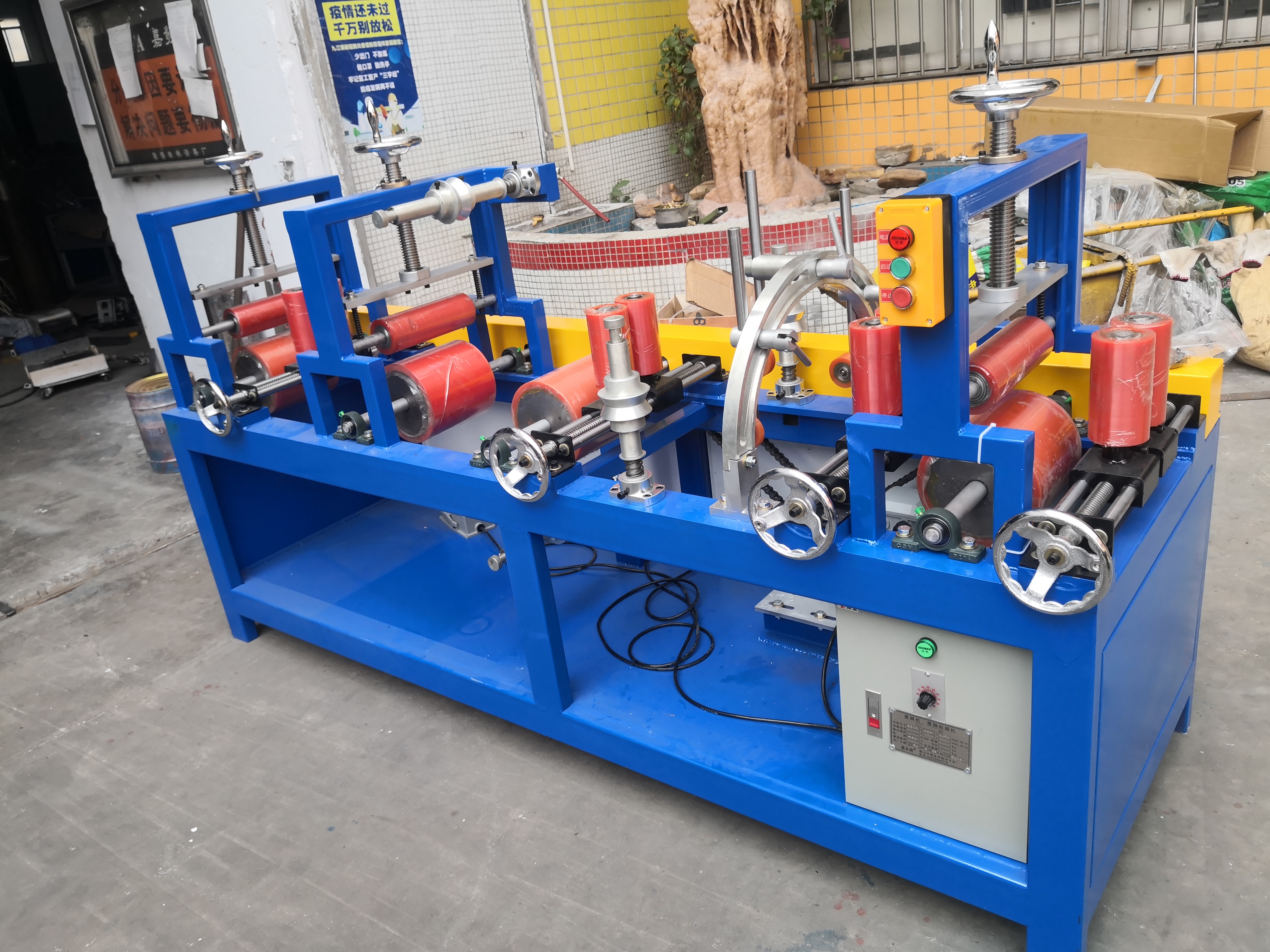

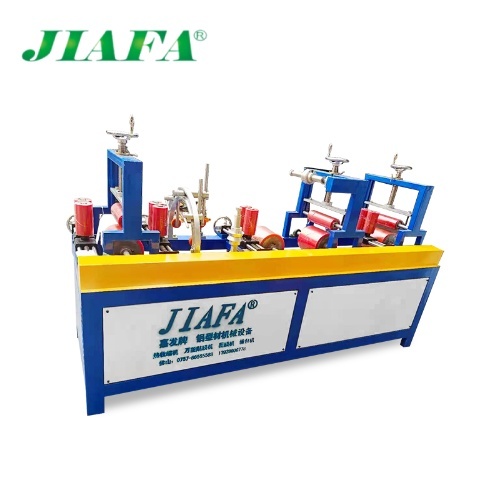

Protective Film Sticking & Laminating Machine for Aluminum Profiles
Product Overview
This is a specialized protective film sticking and laminating machine tailored for aluminum profiles, acting as essential post-processing packaging equipment for finished aluminum products. It firmly adheres protective film to the surface of aluminum profiles, providing all-round protection against scratches, abrasions, contamination, corrosion and other damages during handling, inventory, transportation, secondary processing and on-site installation. After completing the installation work, the protective film can be easily torn off, leaving the aluminum surface clean, smooth and brand-new, effectively retaining the original finish and quality of the finished products.
Main Features
1.Targeted Surface Protection: Designed specifically for aluminum profile protective laminating, delivering stable and efficient film sticking performance to safeguard finished aluminum across the whole circulation, processing and construction links, avoiding surface damage effectively.
2.Wide Material Compatibility: Suitable for large-sized, small-sized, thin-walled and ultra-narrow aluminum profiles, with strong adaptability to cover diversified profile specifications and meet varied production demands.
3.Flexible & User-Friendly Operation: Equipped with interchangeable small rubber rollers and brushes to match different profile surfaces and laminating needs; the drive system integrates forward/reverse switching, jog mode, foot pedal/manual dual control and touch-sensitive operation, paired with rapid start and stop functions for simple, flexible and efficient operation.
4.Precision Automatic Laminating: Realizes accurate and automatic film application, ensuring tight adhesion without wrinkling, bubbling or misalignment, guaranteeing consistent and high-quality laminating effects for various aluminum profiles.
Application Scope
This aluminum profile protective film sticking and taping machine features extensive applicability, perfectly fitting for the laminating protection of various aluminum profiles. It is particularly ideal for door and window profiles, industrial extruded profiles, and all-sized conventional or special-shaped aluminum materials, making it a must-have packaging device for aluminum profile processing and manufacturing enterprises to improve product quality and reduce surface damage losses.
Film Laminating Process
1. Mount the roll-type protective film onto the special film rack of the laminating machine, and adjust the film placement and tension to adapt to the specifications of the aluminum profile to be processed.
2. Place the aluminum profile smoothly on the special attaching platform of the machine, and conduct simple positioning if needed to ensure accurate laminating position.
3. Start the aluminum film sticking machine through the control system, and the equipment will automatically and precisely attach the protective film to the designated surface of the aluminum profile.
4. Once the laminating operation is finished, take out the processed profile, completing the whole protective film sticking process smoothly.
Main Technical Parameters & Requirements
1. Overall Machine Dimensions: 2100×880×1450 mm (Length × Width × Height)
2. Applicable Power Supply: 380V AC, 50Hz; Motor Power: 1.5KW
3. Film Application Feed Speed: 0–120 m/min
4. Film Application Range: Capable of applying protective film at any angle to the upper, lower, left, right flat surfaces and inclined grooves of aluminum profiles; Equipped with 2 universal steering units, the steering wheels and brushes can be adjusted flexibly based on actual product requirements to achieve optimal surface laminating effects for different profiles.
5. Maximum Applicable Profile Dimensions: Width 250 mm × Height 140 mm
6. Feed Direction: Right-in, left-out
7. Supporting Conveyor Configuration: Equipped with one 4-meter galvanized roller conveyor frame, with felt-covered lining at each material entry and exit point to prevent scratching the aluminum profile surface during conveying.
Product Benefits
1. Comprehensive Surface Protection: Effectively isolates the aluminum surface from scratches, corrosion, dust and other damages, maintaining the integrity of the product surface.
2. Optimize Product Appearance: Keeps the aluminum profile surface smooth and clean after film removal, enhancing the overall appearance and market competitiveness of finished products.
3. Added Functional Properties: Can be matched with specialized protective films to endow aluminum profiles with extra functions such as UV resistance and anti-fingerprint, expanding the application value of products.
