Multifunctional film laminating machine with three dragon gate frames (with brush)
Our primary offerings include the Jiafa brand high-efficiency wood grain transfer oven, high-efficiency heat shrink packaging machine, film laminating machine, wrapping machine, and various packaging equipment. Additionally, we provide machinery and equipment for aluminum profiles. With a commitment to excellent quality and competitive pricing, we have emerged as a major supplier of heat shrink packaging machines in China.
Categories: Aluminum Film Taping Machine
Product Introduction

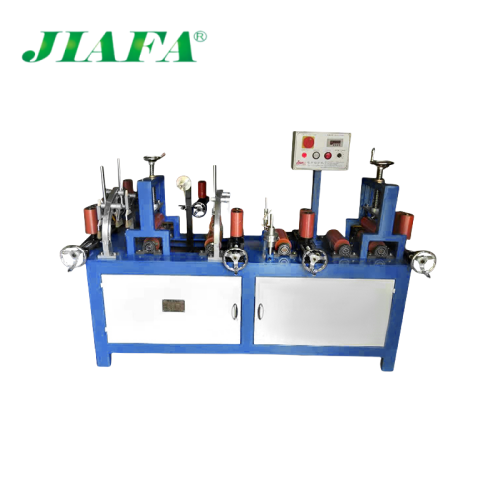

Protective Film Laminating Machine for Aluminum Profiles
Product Overview
This is a specialized protective film laminating and taping machine designed exclusively for aluminum profiles, serving as core post-processing packaging equipment for finished aluminum products. It efficiently applies protective film to the surface of aluminum profiles, shielding the finished products from scratches, abrasions, contamination and other damages during handling, storage, transportation, secondary processing and on-site installation. Once the installation is completed, the protective film can be easily torn off, leaving the aluminum surface smooth, clean and intact as brand new, effectively preserving the product’s appearance quality and surface finish.
Main Features
1. Professional Protective Laminating: Tailored for aluminum profile surface protection, delivering stable and reliable film laminating performance to meet the anti-damage needs of finished aluminum throughout the entire circulation and construction chain.
2. Wide Material Adaptability: Compatible with large-sized, small-sized, thin-walled and ultra-narrow aluminum profiles, with strong versatility to cover diversified profile specifications.

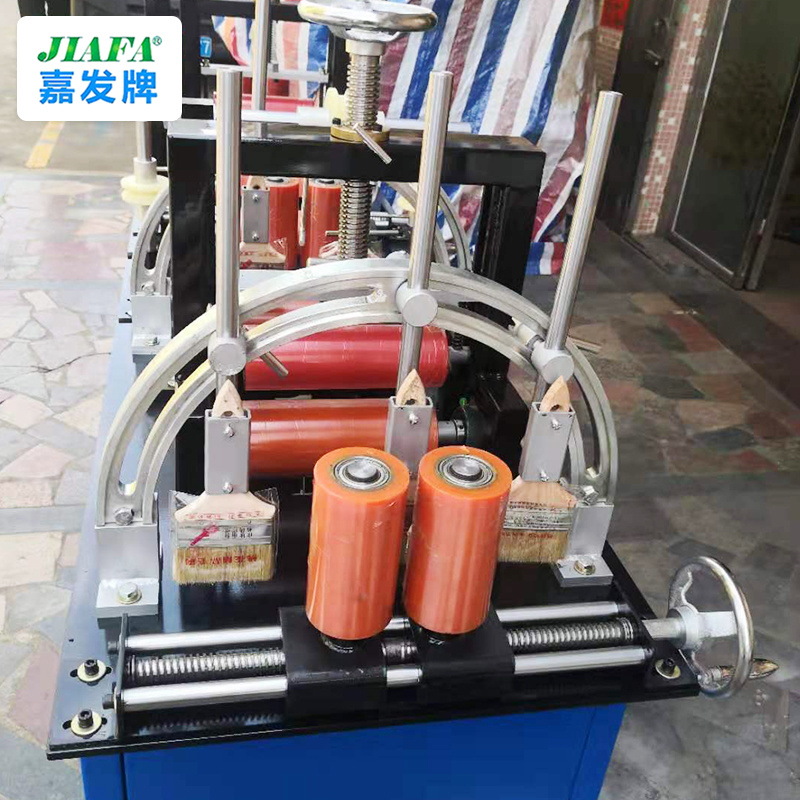

3. Flexible Operating System: Equipped with interchangeable small rubber rollers and brushes to adapt to different profile surfaces and laminating requirements; the drive system supports forward/reverse switching, inching operation, foot pedal/manual dual control and touchscreen operation, paired with rapid start and stop functions for easy, flexible operation.
4. High Laminating Precision: Realizes automatic and accurate film application, ensuring firm adhesion without wrinkling, bubbling or misalignment, optimizing the overall packaging effect of aluminum profiles.
Application Scope
This aluminum profile protective film laminating machine boasts extensive applicability, perfectly suitable for laminating protection of various aluminum profiles, including door and window profiles, industrial extruded profiles, and conventional/special-shaped aluminum materials of all dimensional specifications. Whether it is conventional flat profiles or special-structured profiles, it can achieve ideal protective film laminating effects, making it an essential packaging device for aluminum profile processing and manufacturing enterprises.
Film Laminating Process
1.Install the roll-type protective film onto the special film holder of the laminating machine, and adjust the film tension and position to match the profile specifications.
2.Place the aluminum profile to be processed smoothly on the special laminating platform of the machine, and fix or position the profile as needed.
3.Start the machine via the control panel, foot pedal or manual button, and the equipment will automatically and accurately attach the protective film to the designated surface of the aluminum profile.
4.After the laminating process is completed, take out the finished profile, and the whole protective film laminating operation is finished.
Main Technical Parameters
1. Overall Machine Dimensions: 2300×880×1450 mm (Length × Width × Height)
2. Power Supply: 380V AC, 50Hz; Motor Power: 1.5KW
3. Film Feeding Speed: 0–120 m/min (stepless adjustable)

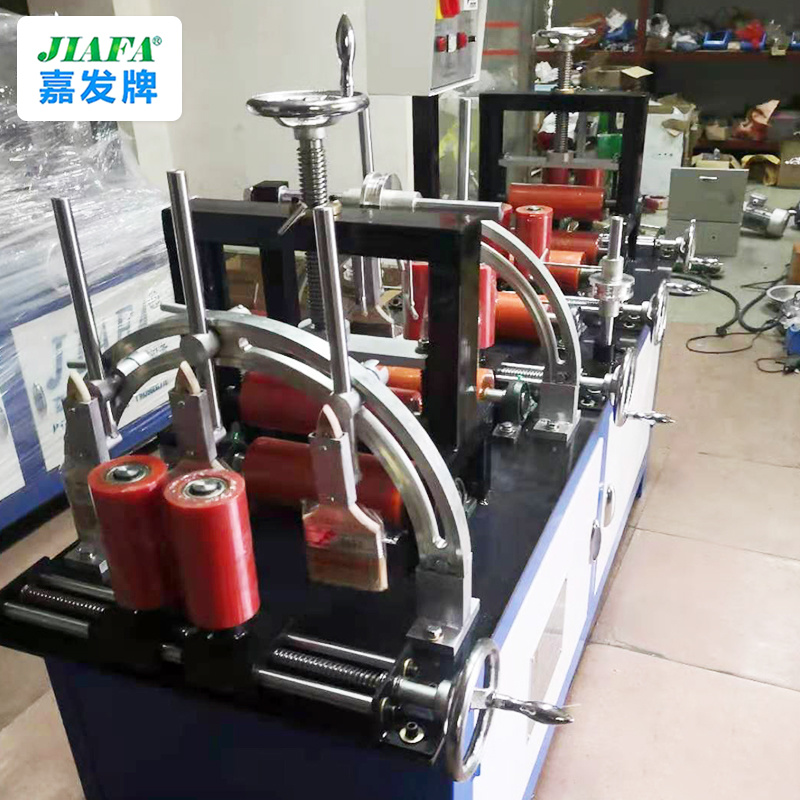

4. Film Laminating Range: Capable of laminating protective film on upper, lower, left, right flat surfaces and inclined grooves of profiles at any angle; Equipped with 3 universal steering units, the steering wheels can be flexibly adjusted according to actual product specifications to achieve optimal laminating effect on various profile surfaces.
5. Max. Applicable Profile Size: Width 200 mm × Height 140 mm
6. Feeding Direction: Left-in & Right-out / Right-in & Left-out (customizable as per customer requirements)
7. Supporting Conveyor: Equipped with 1 set of 4-meter galvanized roller conveyor frame, with felt lining arranged at each material inlet and outlet to avoid profile surface scratching during conveying.
