Semi-Automatic Film Packaging Production Line for Aluminum Profiles
MAIN FEATURE
1. This equipment is specifically designed for manual/online automatic film laminating and cutting on aluminum profiles.
2. Featuring a unique design, it is safe and reliable, simple to operate, enhances work efficiency, saves energy, and conserves labor resources.
3. The new automatic film taping machine is suitable for applying film to the front surfaces and simple irregular surfaces of profiles.
4. This automatic film sticking machine for aluminum is simple to operate. The tension adjustment of the five vertical rollers uses a linked mechanism, making adjustments faster and more convenient than conventional film applicators. The equipment features a film-out alarm display. When the protective film is depleted or breaks during operation, the system detects the absence of film and automatically stops the machine while triggering an alarm display.
5. Quick and convenient film-changing mechanism: Used paper cores are directly removed after application. No need to press and tighten the cover after loading film, eliminating unnecessary work and boosting production efficiency.
6. Equipped with two curved frames featuring brushes and pressure rollers for film compression, designed for simple irregular profiles. This reduces air bubbles during application and enhances film quality on profiles.
7. The main unit employs servo motor drive with synchronous belt transmission, delivering precise positioning, low noise, and smooth braking.
8. This automatic film laminating equipment for aluminum profile requires only one operator for feeding, with each profile taking 4–6 seconds to process. This reduces labor requirements and boosts operational efficiency.
MAIN STRUCTURAL COMPONENTS
The automatic film sticking machine for aluminum consists of a feed storage conveyor rack, feed roller rack, film application main unit, lifting and translating device, and discharge conveyor rack.
FILM TAPING PROCESS
Operational Procedure:
Profile is placed on the feed conveyor storage rack (or stored on a flatbed cart) → Manually transfer profiles to the feed roller rack → Feed into the inlet → Servo motor drives synchronous belt to feed and apply film → Material passes through sensors for positioning → Automatic serrated film cutting → Second profile enters → Servo motor drives synchronous belt to separate two profiles → Film-coated profiles automatically discharged → Lifting and translating device → Discharge conveyor rack → Manually bundle materials.
MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
1. Model: Left-handed machine

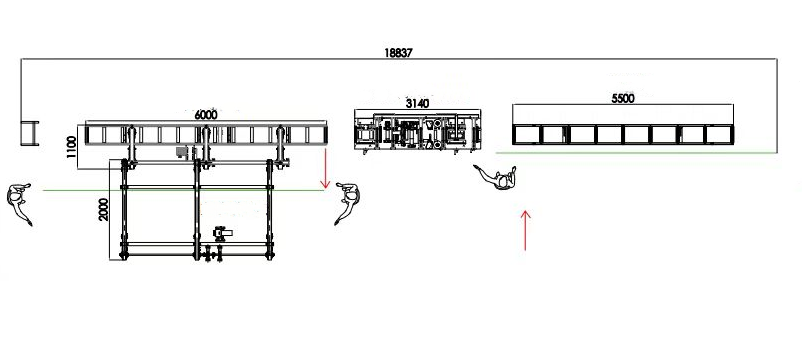

2. Equipment footprint: Designed for 7-meter material length. Main unit dimensions: 3150mm (L) × 780mm (W) × 1500mm (H). Total length with feed/discharge conveyors: approx. 19 meters.
3. Single material weight: <12kg/piece.
4. Film Cutting Quantity: Single piece per operation.
5. Profile Specifications: Maximum length: 4m–7m; maximum width: 220mm; maximum height: 150mm.
6. Film Specifications: Maximum width 20–200mm, maximum height 20–150mm.
7. Film Cutting Quality: Requires smooth cut edges with protective film extending ±5mm beyond profile ends.
8. Film Cutting Mode: Manual/automatic cutting; (Cutting cylinder depth manually adjustable per film thickness).
9. Film absence detection: Automatic detection and alarm display for film absence or mid-cut breakage.
10. Film loading device: Quicker and more convenient film loading/changing than standard models.
11. Input power: Approx. 3KW (excluding conveyor frame power).
12. Aluminum profile wall thickness for film application: 1.0mm or above.
13. Film application shape: Flat four-sided film (Note: Manual mode can be used for irregular profiles).
14. Single-side film application; when film runs out during profile application, the machine can reverse to reload film.
15. Filming speed: 0–2 m/s; 10–15 profiles per minute. Filming speed slows proportionally when exceeding parameters.
16. Feeding method: Manual feeding
17. Vertical roller and pressure roller clamping method: Electric adjustment
