Protective Film Sticking Machine For Aluminum Narrow Profiles
Our primary offerings include the Jiafa brand high-efficiency wood grain transfer oven, high-efficiency heat shrink packaging machine, film laminating machine, wrapping machine, and various packaging equipment. Additionally, we provide machinery and equipment for aluminum profiles. With a commitment to excellent quality and competitive pricing, we have emerged as a major supplier of heat shrink packaging machines in China.
Categories: Aluminum Auto-Film Sticking Machine
Product Introduction

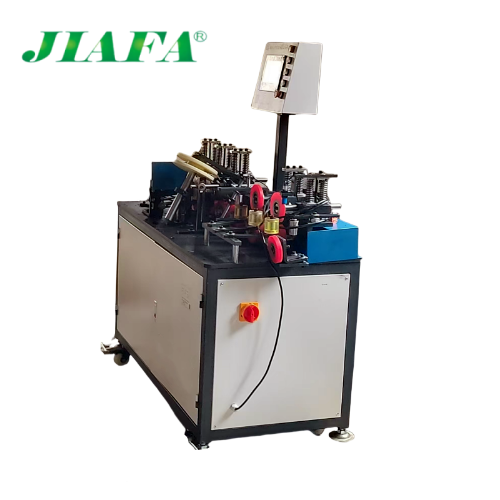

Protective Film Sticking Machine For Aluminum Narrow Profiles
MAIN FEATURE
1. This machine features a film-cutting device
2. That precisely controls film positioning and application pressure.
3. It ensures the protective film adheres evenly to small parts without bubbles or wrinkles.
4. After film application and packaging by this machine, the surface of extruded profiles receives superior protection, enhancing their market competitiveness.
USE RANGE
Protective film packaging for surfaces such as aluminum profile small parts, corner trim, baseboards, short sections, exterior wall aluminum strips, decorative aluminum strips, photovoltaic frames, and solar aluminum door and window materials.
FILM LAMINATION PROCESS
1. Power on the equipment; the power indicator light should illuminate;
2. Click the “Enter System” button on the touchscreen to access the production page;
3. Equipment origin point: Check if the “Cutter Origin” indicator light on the touchscreen is green. If it is red, reset the cutter to return it to the origin point;
4. Manual feeding: Press the “Forward” button, manually place the product at the feed opening, and manually apply the film when the product moves below the film;
5. Automatic operation: Press the “Start” button, the equipment will operate automatically, and continue to manually feed products at the feed opening.
MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
1. Machine Dimensions: 1500×700×1500(L×W×H mm)
2. Applicable Power Supply: 220V; Rated Power: 3.2KW; Rated Frequency: 50Hz
3. Roller dimension: 110
4. Film feeding speed: Up to 70 meters per minute
5. Film application range: 5-80
6. Maximum profile dimensions: Width 80 (accommodates 7-meter short sections)
7. Conveyor supports (2 units): Dimensions 1200*3000*720.
Leveraging advanced technology from Europe and America since 1991, specializes in producing the Jiafa brand packaging machine. Our production spans two workshops, covering 4500m² and 7000m², strategically located in Boai Road, Dali Town, Foshan City, and Longgao Road, Jiujiang Town, Foshan City. Notably, our offerings include the high-efficiency wood grain transfer oven, heat shrink packaging machine, film laminating machine, and wrapping machine, alongside various packaging equipment. Committed to excellence, competitive pricing, and top-notch quality, we've earned a reputation as a leading supplier of heat shrink packaging machines in China.
